Back CNG-Powered Vehicle (NGV) and Fueling System Solutions
09/12/2019
14481
FITOK Fast-fill Ball Valve for CNG Filling Station
|
High-cycle life High-pressure
Max. Working Pressure: 6000psig (414bar) Working Temperature: -40~200℉ (-40~93℃) |
 |
 |
 |
| Better external sealing performance by using Hard sealing design for the port connections. | |||
| Higher cycle life by using PEEK seats, Low temp. NBR O-rings and a special vent orifice Ease of actuation by “L” pattern flow path. | |||
FITOK Tube Fittings and Valves ECE R110 Compliant

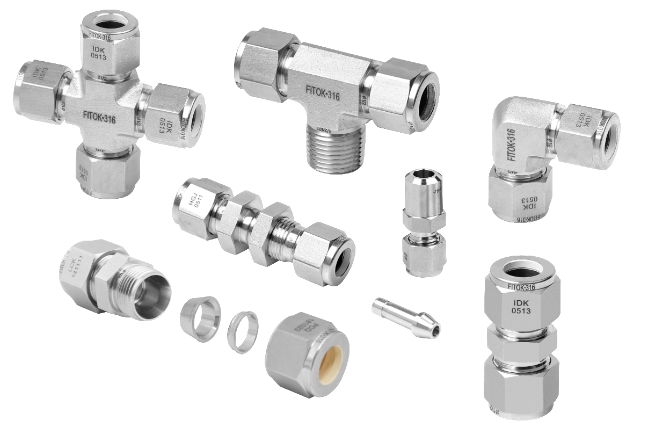

FITOK offers a full range of fittings and components that are designed to be compatible with Compressed Nature Gas technology and applications, such as CNG-powered passenger cars, NGV busses & trucks, CNG filling stations including CNG compressors. Below products are tested and certified per ECE R110 standard.• 6D Series Tube Fittings
The FITOK tube fittings provide gas-tight sealing performance in critical applications. It is a reliable connection, with fast installation and no special tools required. Additional advantages include relatively stable performance of installation torque and excellent repeated reassembly performance.
• BF Series Ball Valves (-R110)
   |
Trunnion ball valves, with ultralow-temperature fluorocarbon material provide sealing capability over the full temperature range -40°F to 248°F (-40°C to 120°C). |
• BU Series Ball Valves (-R110)
 |
Working temperature: -40 to 248°F ( -40 to 120°C) High flow-CV value from 4.0 to 13.8 Bi-directional flow All components contact with medium are designed to be compatible with hydrogen or CNG |
• CH Series Check Valves (-R110)
 |
Working temperature: -40 to 248°F ( -40 to 120°C) Cracking pressure: 1/3 to 25 psig (0.02 to 1.7 bar) Seat ring continuously cleaned by media, avoiding secondary pollution |
• FT Series Filters (-R110)
 |
FT Series Filters are available in a range of filter sizes with a choice of sintered and strainer elements replaceable without removing the body from the system. Working temperature: -40 to 248°F ( -40 to 120°C) |
To order ECE R110 certified valves and filters, please add -R110 to the product ordering number.
Please contact us directly online or contact your nearest authorized distributor for more details!
